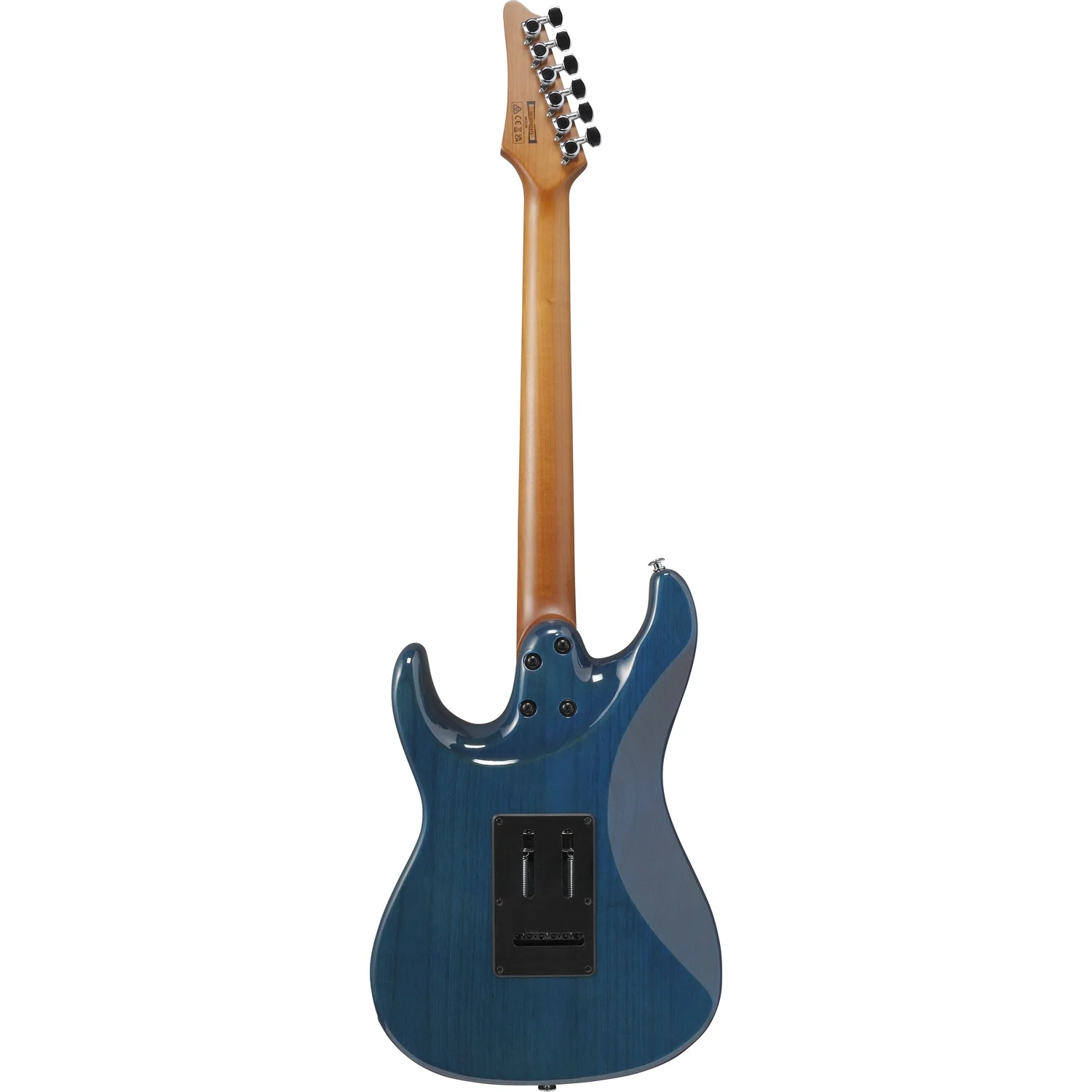

Ibanez AZ22S1F AZ Series 6 String Electric Guitar

Ibanez AZ22S1F AZ Series 6 String Electric Guitar Overview:

Features:

Roasted Maple neck
The Roasted Maple neck is heat-treated to increase stability, durability, moisture resistance and tolerance of temperature changes.









Jatoba fretboard
Jatoba has a reddish brown color and produces a rich mid range with a crisp high end.









Jumbo Stainless Steel frets
Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response and effortless articulation when playing chords and clear tone when playing single notes.







Locking machine heads
Locking machine heads ensure accurate and stable tuning.











Flamed Maple top / Alder body
The Flamed Maple top displays a beautiful wood grain. The Alder body delivers a well-balanced bright tone, enriched resonance and sustain.









Ibanez Classic Custom pickups
Ibanez Classic Custom pickups offer a versatile tonal palette, combining the warm, clear sound of alnico neck and middle single-coil pickups with the powerful, dynamic output of a ceramic bridge humbucker. This unique blend delivers precise articulation and expressive tone.





T106 tremolo
The T106 tremolo bridge with 6 independent saddles makes precise height and intonation adjustment of each string easy.









dyna-MIX9 switching system with Alter Switch
The dyna-MIX 9 offers nine sound variations and can switch between humbucker and single coil modes with just a flick of the mini switch. One mode even simulates a humbucking sound from the combination of two single coil pickups.







The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.









Specifications:

• neck type: AZRoasted Maple neck

• top/back/body: Flamed Maple topAlder body

• fretboard: Jatoba fretboardWhite dot inlay

• fret: Jumbo Stainless Steel frets

• number of frets: 22

• bridge: T106 bridge

• string space: 10.5mm

• neck pickup: Ibanez Classic Custom (S) neck pickupPassive/Alnico

• middle pickup: Ibanez Classic Custom (S) middle pickupPassive/Alnico

• bridge pickup: Ibanez Classic Custom (H) bridge pickupPassive/Ceramic

• factory tuning: 1E,2B,3G,4D,5A,6E

• string gauge: .010/.013/.017/.026/.036/.046

• hardware color: Chrome

NECK DIMENSIONS

• Scale : 648mm/25.5"

• a : Width: 42mm at NUT

• b : Width: 56.5mm at 22F

• c : Thickness: 20.5mm at 1F

• d : Thickness: 22.5mm at 12F

• Radius : 305mmR
