Ibanez AEWC11 Semi Electro Acoustic Guitar

Ibanez AEWC11 Semi Electro Acoustic Guitar Overview:

Ibanez AEQ-SP1 preamp w/Onboard tuner
The AEQ-SP1 preamp provides the extra punch of an onboard EQ, and a convenient and easy-to-read digital tuner located on the upper bout.

AEWC original Top-Loading bridge
The AEWC original Top-Loading Bridge offers a fast and easy method for string changes.

Nyatoh neck
The Nyatoh neck provides a rich mid-low end.

Specifications:

• body shape AEWC body
• top Spruce top
• back & sides Sapele back & Sapele sides
• neck Comfort GripNyatoh neck
• fretboard Walnut fretboard
• bridge Walnut AEWC original top loading bridge
• inlay Off-set white dot inlay
• soundhole rosette Acrylic rosette

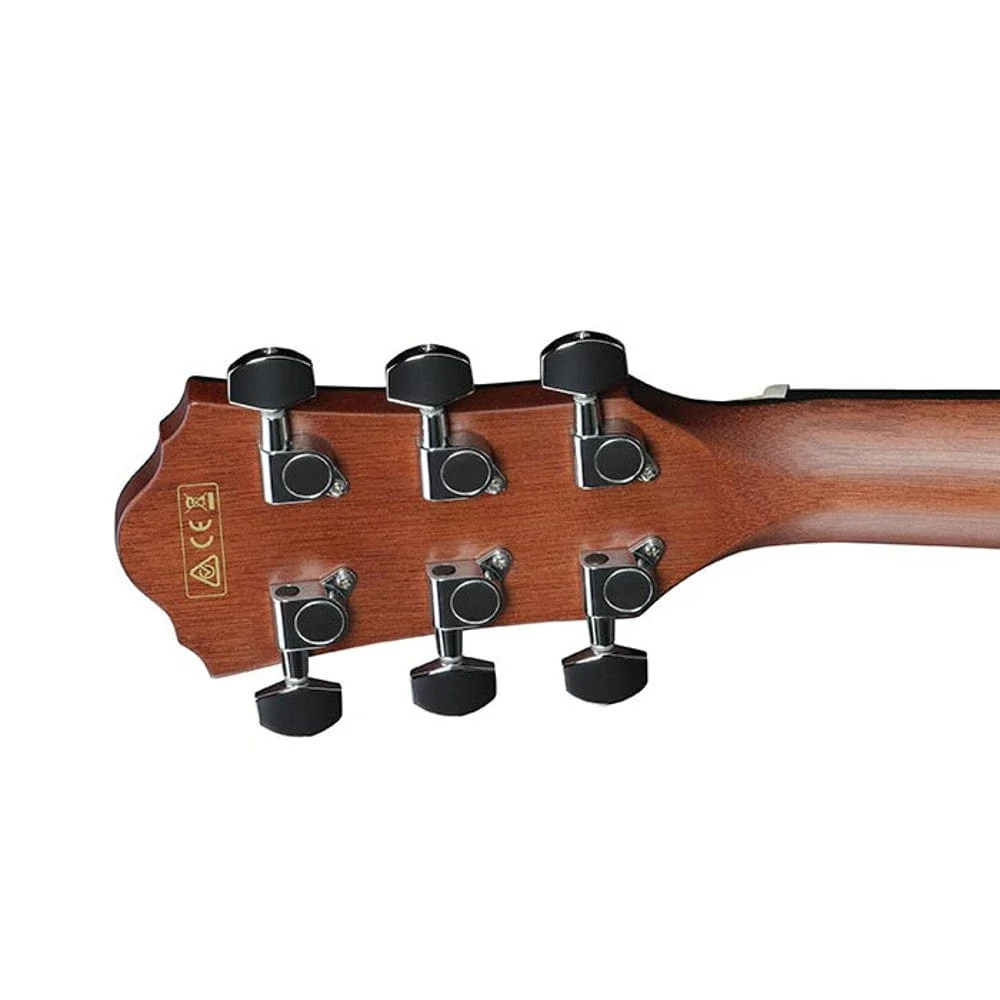

• tuning machine Chrome Die-cast tuners (18:1 gear ratio)
• number of frets 20
• strings Ibanez IACS6C
• string gauge .012/.016/.024/.032/.042/.053
• string space 11mm
• factory tuning 1E,2B,3G,4D,5A,6E
• pickup Fishman Sonicore
• preamp Ibanez AEQ-SP1 preamp w/Onboard tuner
• output jack 1/4" output


NECK DIMENSIONS

• Scale : 634mm

• a : Width 43mm at NUT

• b : Width 55mm at 14F

• c : Thickness 20mm at 1F

• d : Thickness 21mm at 7F

• Radius : 400mmR


BODY DIMENSIONS

• a : Length 19 3/8"
• b : Width 15 "

• c : Max Depth 4 "
