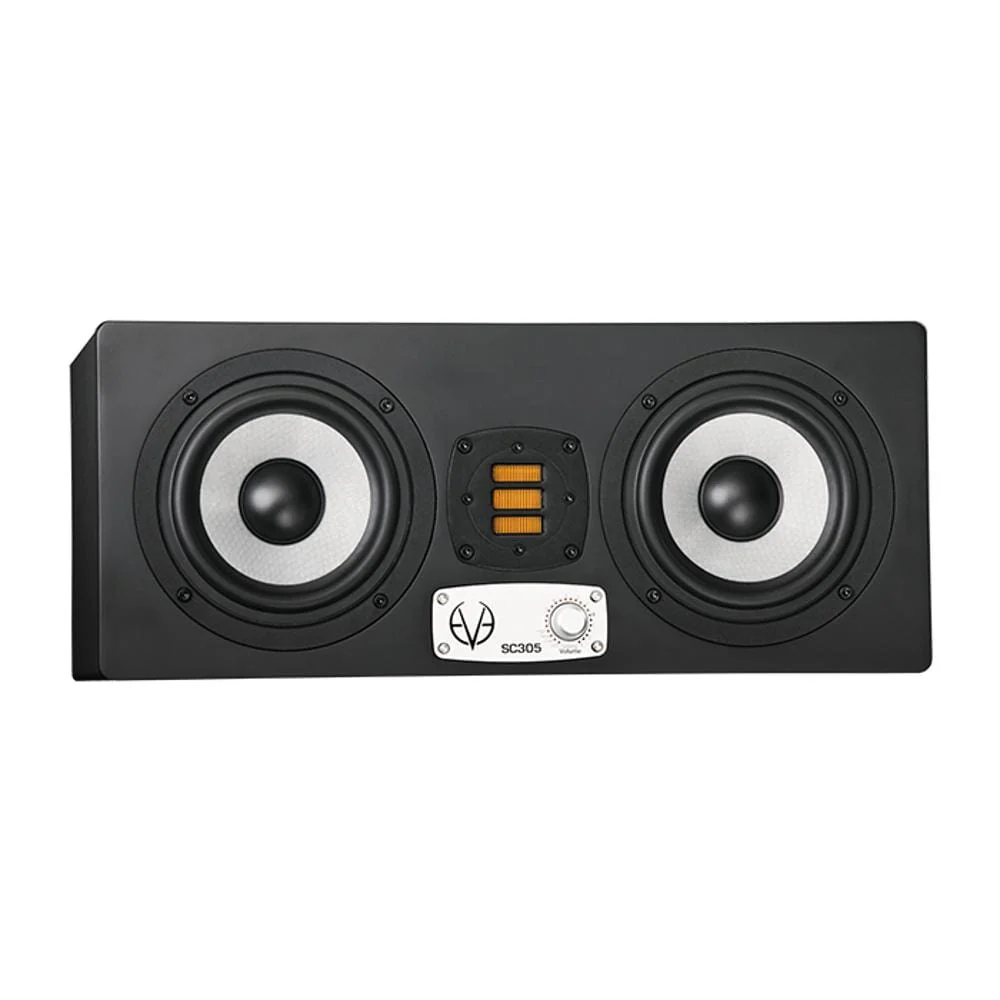

EVE Audio SC305 3 Way 5 Inch Studio Monitor - Single
EVE Audio SC305 3 Way 5 Inch Studio Monitor - Single Overview:
Ā
The SC305 combines the power from three different amplifiers to deliver a very efficient dynamic and low noise sound reproduction. Our three-way systems are not only developed for critical and detailed listening but also to deliver power and thunderous bass.
Ā
DSP / SMART-KNOB
All EVE Audio monitors feature a high-resolution DSP electronics. A high-quality analog/digital converter from BurrBrown (24bit/192kHz) converts the analog input signal supplied via RCA or XLR. The DSP ensures latency-free filtering and simultaneously protects the entire frequency range from overload. When switched on the volume of the monitor increases slowly to leave enough time to reduce the source volume if the input signal is too loud.
Ā
Adjustments to the acoustic environment can be made via the front rotary/pressure encoder the SMART-knob with rotating LED ring. This knob allows the levelling of system volume as well as the adjustment of filters for room variables (low shelf mid eq and high shelf filters). All settings are displayed on the LED ring providing instant information about the selected values. The brightness of the LED ring can be adjusted for dark studios or video applications.
Ā

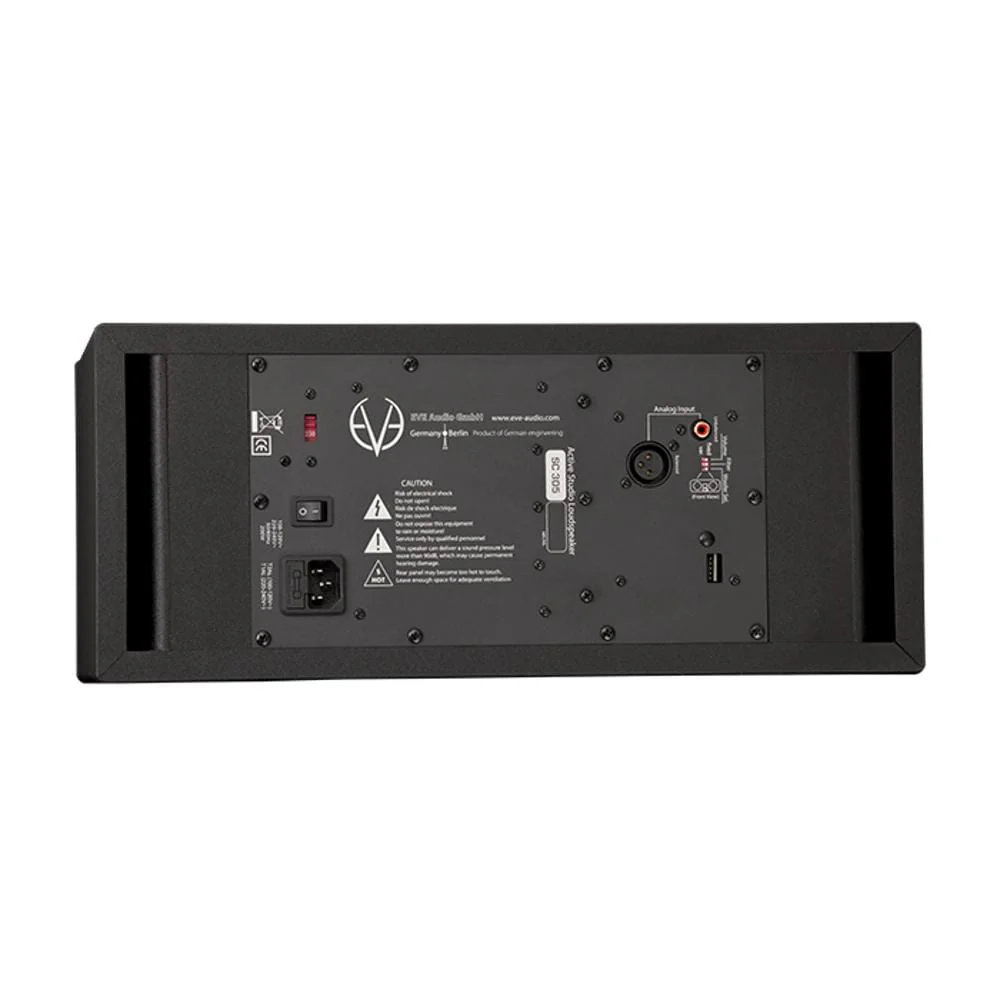

High-quality Class D amplifiers complete the system and deliver enough power to the demands of modern music production. Selected volume and/or filter settings can be independently fixed with DIP-switches that are positioned on the rear of the amplifier to prevent unauthorised or unintentional adjustments.
Ā
Bass Port Design
It's all in the geometry. One of the downside effects of port compression is bass distortion. As you turn up the volume the efficiency of the port reduces and distortion will increase.
Ā
We opted for a large rear rectangular port with no hard edges for our bass port designs. That's one of the reasons EVE monitors have a high efficiency on the lower frequencies.
Ā
The results? High sound pressures with tight and punchy bass frequencies that don't cause port distortion. Crank up the volume and EVE will deliver a round bass. And with no holes to look at every time you glance at your speakers.
Ā
Specifications
- Free-field frequency range (-3dB):Ā 50Hz - 21kHz
- Tweeter: AMT RS3
- Mid-Woofer:Ā 130mm/5"
- Woofer: 130mm/5"
- Cross-over frequency: 350Hz/3000Hz
- Max SPL per pair: 118dBspl
- Output power (woofers): 2 x 50W
- Output power (tweeter): 50W
- Connectors
- XLR in (impedance): (10k)
- RCA in (impedance):Ā (10k)
- Power consumption
- Standby: < 1W
- Full output: 110VA
- Dimensions (WxHxD) [mm]: 425 x 180 x 250
- Dimensions (WxHxD) ["]: 6.73 x 7.09 x 9.84
- Weight [kg]: 8.5
