Eikon EK8NF 8” Near Field Studio Monitor Speaker - Single

Eikon EK8NF 8” Near Field Studio Monitor Speaker - Single Overview:

EK NF is the ideal nearfield monitor solution for any kind of music production applications. From the carefully selected transducers to the proprietary enhanced waveguides and to the low resonance cabinet design, everything has been tailored to offer the best accuracy over the whole audio spectrum. The perfectly optimized electronics, including highheadroom separate Class AB amplifiers for high and low section, high precision crossover networks and separate LIMITER circuits, provide maximum resolution and minimum listening fatigue.

• Bi-amplified 2-way system
• 1 “soft-dome tweeter for detailed response and a high-resolution sound
• Proprietary integrated elliptical waveguide with accurate directivity control
• Long-excursion 8” woofer with lightweight fiber-glass composite cone
• Precisely calculated front tuning port for greater low-frequency extension
• Multiple audio input connectors for connecting any kind of source
• HF adjustment for a flexible control of high frequency response
• Sophisticated, carefully designed crossover filters for an improved resolution
• High-headroom Class AB 45+75W amplifiers with dual accurate CLIP LIMITER

Specifications:

• System type: 2-way vented enclosure
• High Frequency Device: 1 “ dome tweeter on elliptical waveguide
• Low Frequency Device: 8” woofer with fiberglass reinforced cone
• Angular Coverage: 90° H x 60° V
• HF Amplifier Continuous Power: 45W Class AB
• LF Amplifier Continuous Power: 75W Class AB
• Processing: Analog
• Frequency Response: 45 Hz - 20 kHz
• Max SPL: 109 dB

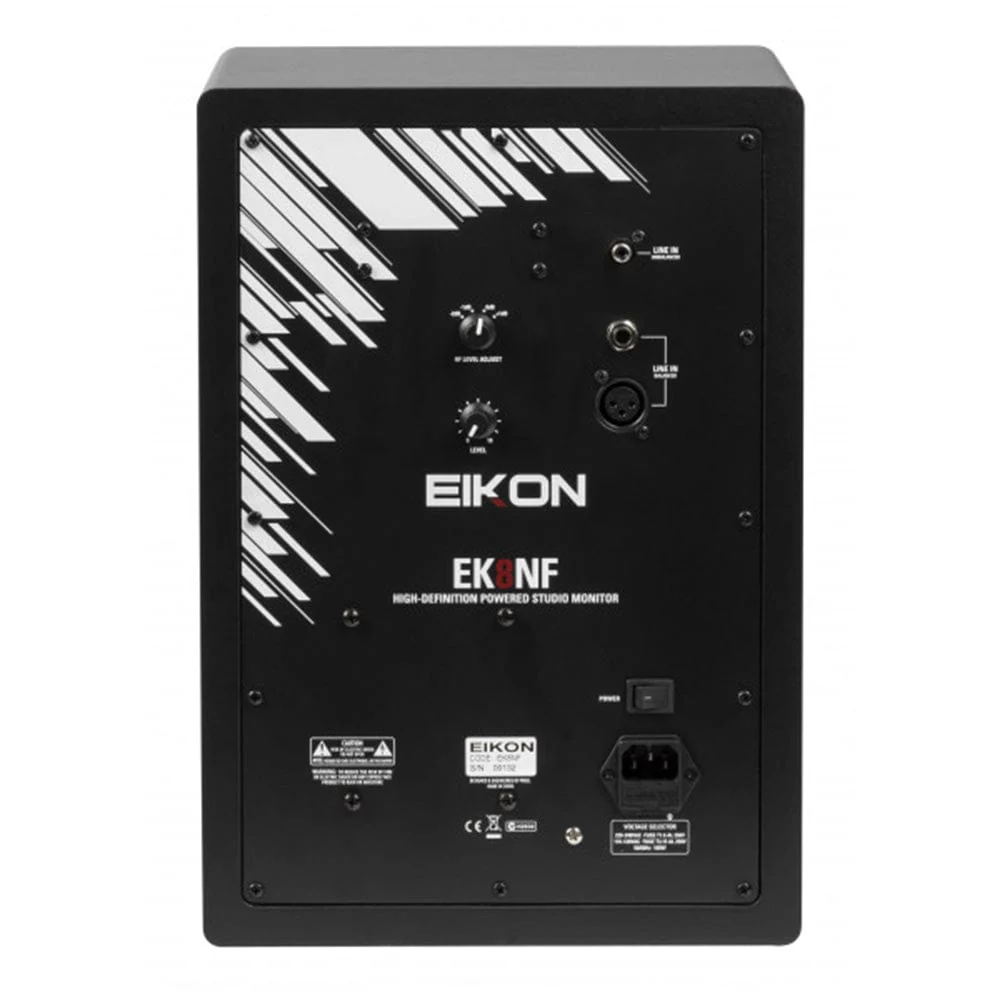

• Connectors: 1/4” JACK, XLR-F, RCA
• Controls: LEVEL, HF ADJUST
• Construction: Vinyl laminated MDF cabinet with ABS front
• Cabinet Colour: Black
• Power Supply 230 VAC or 120 VAC 50/60 Hz with LINE VOLTAGE selector
• Dimensions: (W x H x D) 265 x 380 x 305 mm
• Weight: 10 kg

Made in China
