EFNOTE 7X Acoustic Designed Electronic Drum Kit

EFNOTE 7X Acoustic Designed Electronic Drum Kit Overview:

EFNOTE 7X : The Peak of Inspiration

Drives Your Creativity

• Specially full-expanded based on EFNOTE 7

• Full-sized 5-piece shell and 5-piece cymbal set

• 360° flat sensing with multi-sensor technology

• World's first STAK 17" FX cymbal

• Player centric design


Authentic Presence

• Proves your musicality to the audience on stage

• Low, wide and bold silhouette asserts its potential

• Dignified black oak-ish finish

• Realistic swaying of full-sized cymbals that visualize its sound

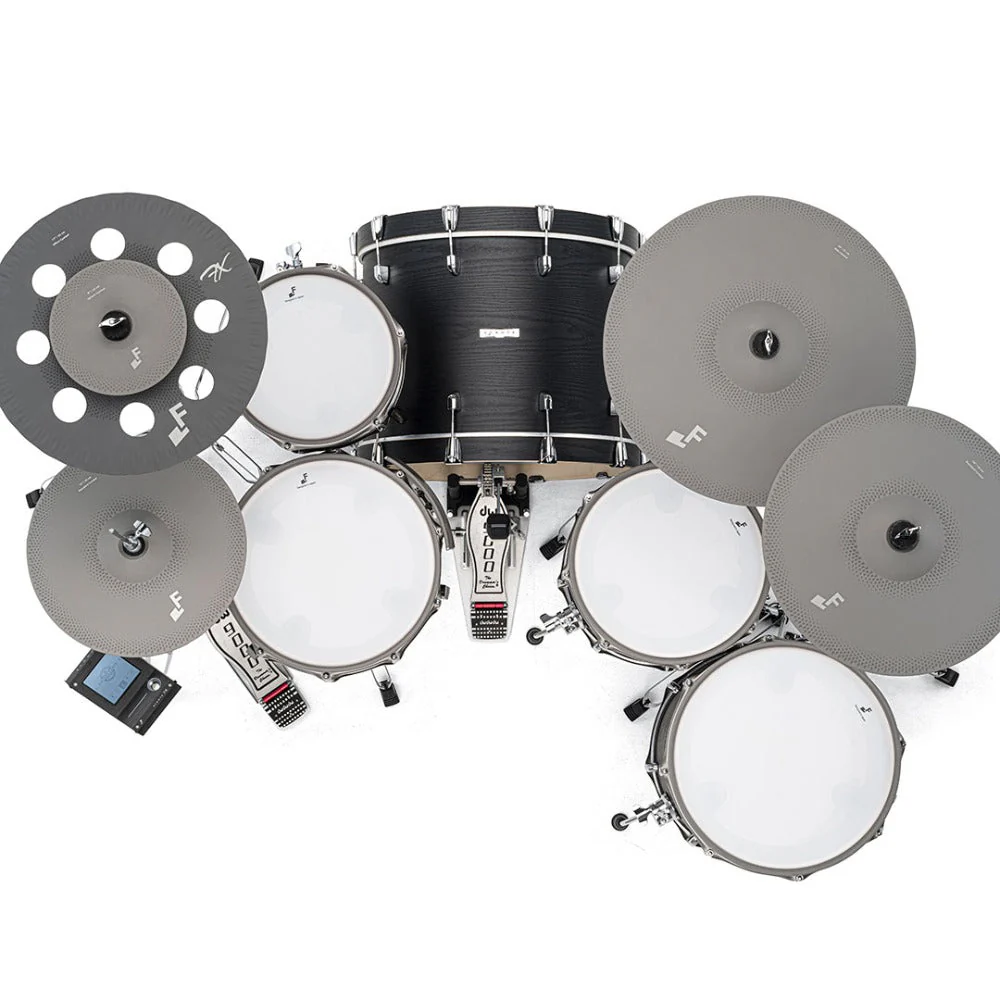

Tradition and Innovation

Modern but classic setup with:

• 1x basket stand mounted tom

• 2x floor tom

• 1x holed effect cymbal

• 1x crash cymbal

• 1x splash cymbal


Portrays Textures of Vintage Drums

• Good old collector's drum sets are newly recorded for EFNOTE 7/7X

• Contains attack and eKick elements that can be layered to enhance the sound

• Dedicated remastered acoustic drum sounds


Drums & Cymbals

17" FX Cymbal - Real-Feel

• Light touch and real wobbling

• 360° flat sensing

• Special surface design with dedicated dark-gray color and hammered texture


17" FX Cymbal - Stackable

• World's first STAK mount design enables stacking electronic cymbals

• In the EFNOTE 7X configuration, the 8" splash cymbal can be stacked on the 17"


17" FX Cymbal - Suspendable

• STAK also provides a suspended cymbal setting with clean wiring


20" Ride Is Here!

• The 20" diameter provides slow wobbling of edge and the quick response of bow/cup

• Multi-sensored 360° play/choke area

• 360° free-swinging design

• Responsive thin edge

• Hammered texture surface


Finest Hi-Hat Cymbals

• 14" top/bottom cymbals

• World's first multi-optical sensing to capture the motions in 3D

• Tru-Motion™ technology for expressiveness leap

• 360° free-swinging top/bottom cymbal design


Beautiful Cymbal Surface

• Elegant warm-gray and refined dark-gray (17" FX) surface with fine engravings

• Clean silicone rubber surface that is resistant to drumstick marks


9-Sensor Snare Drum

• 14 x 5.5", 10 lugs, birch wood shell, 2ply mesh drum head

• Multi-sensor for hotspotless and high-resolution sounding

• High head tension tuning available

• Wide and adjustable side-rim


Independent Side-Rim

• Easy, intuitive and reliable

• No switch operation required

• Elegant arc design

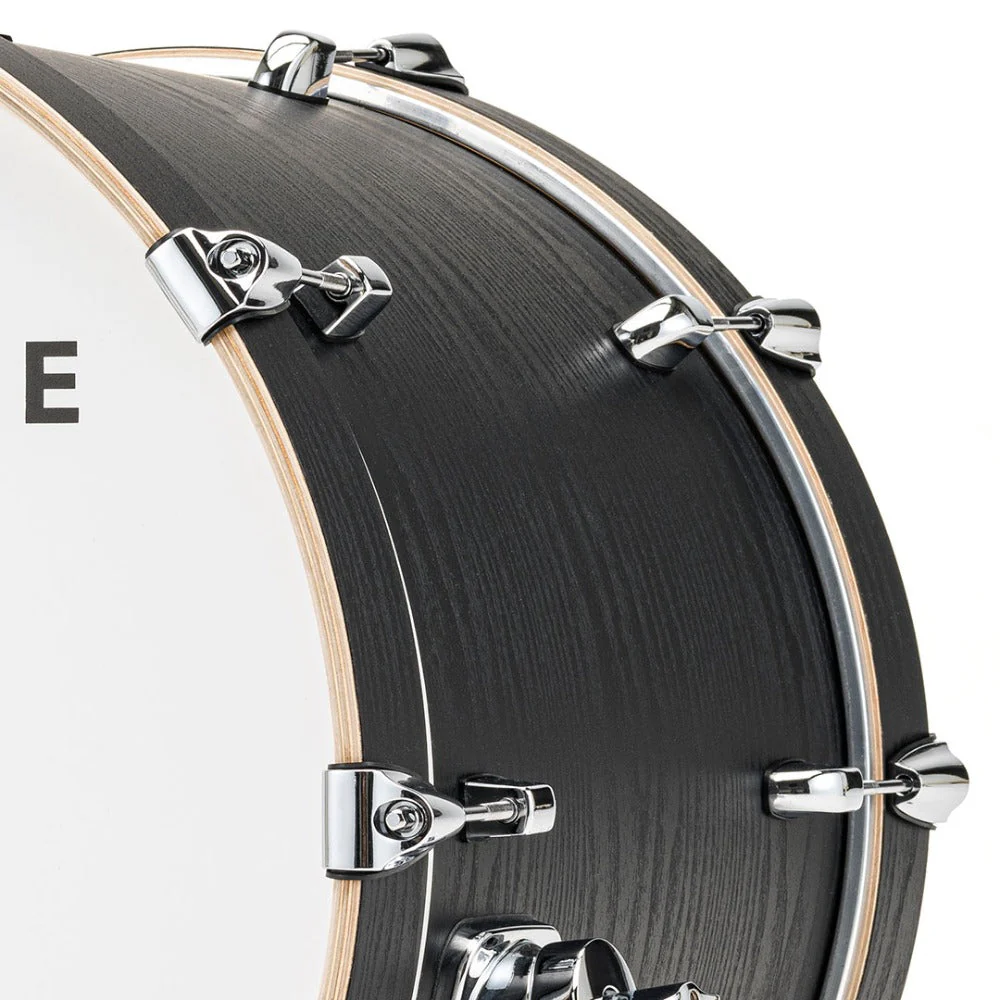

20" Kick, Unwavering Confidence

• 20 x 15", 10 lugs, birch wood shell, 2ply mesh drum head

• Props the whole set at the center of stage

• Stable multi sensing for single/double beater(s)


Modern Two Floor Toms Style

• 13 x 13", 8 lugs / 15 x 15", 8 lugs

• Birch wood shells, 2ply mesh drum heads

• Multi-sensor for hotspotless and high-resolution sounding

• Low-rebound 2ply mesh drum head

• Low head tension tuning available


Sound Module

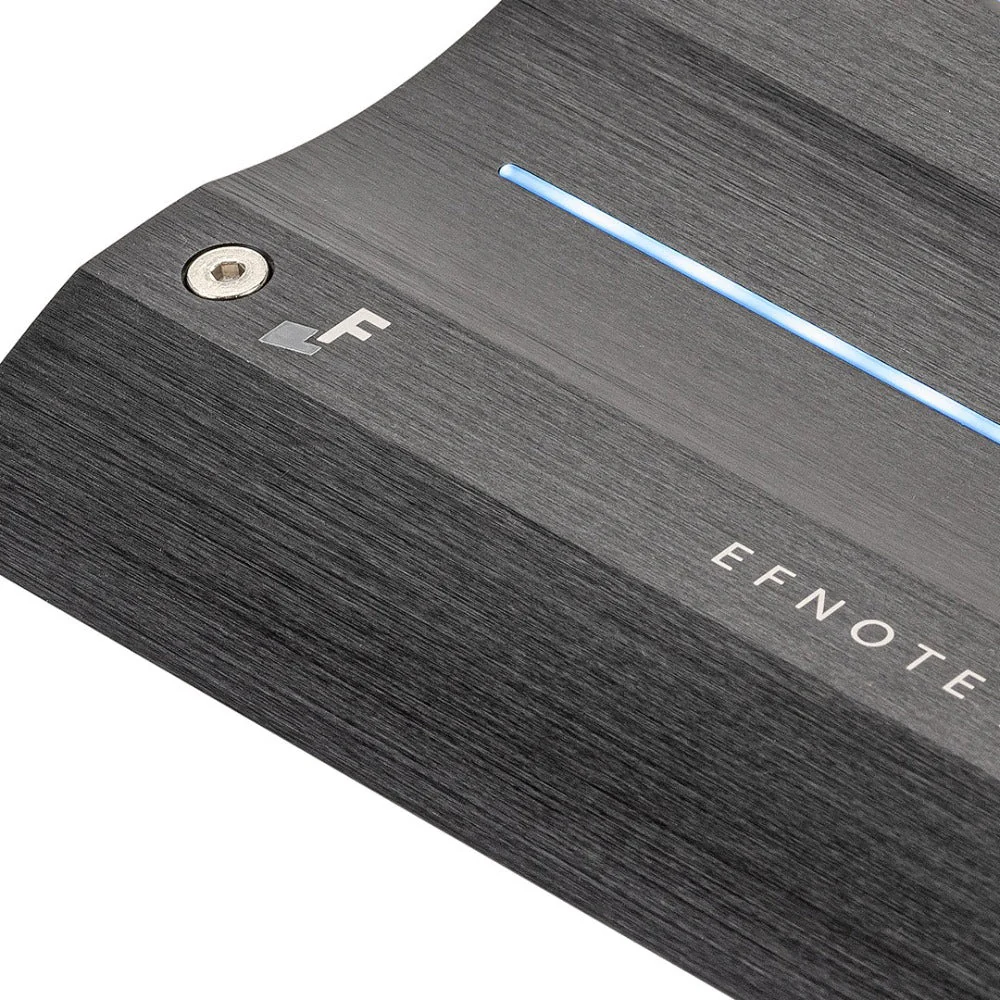

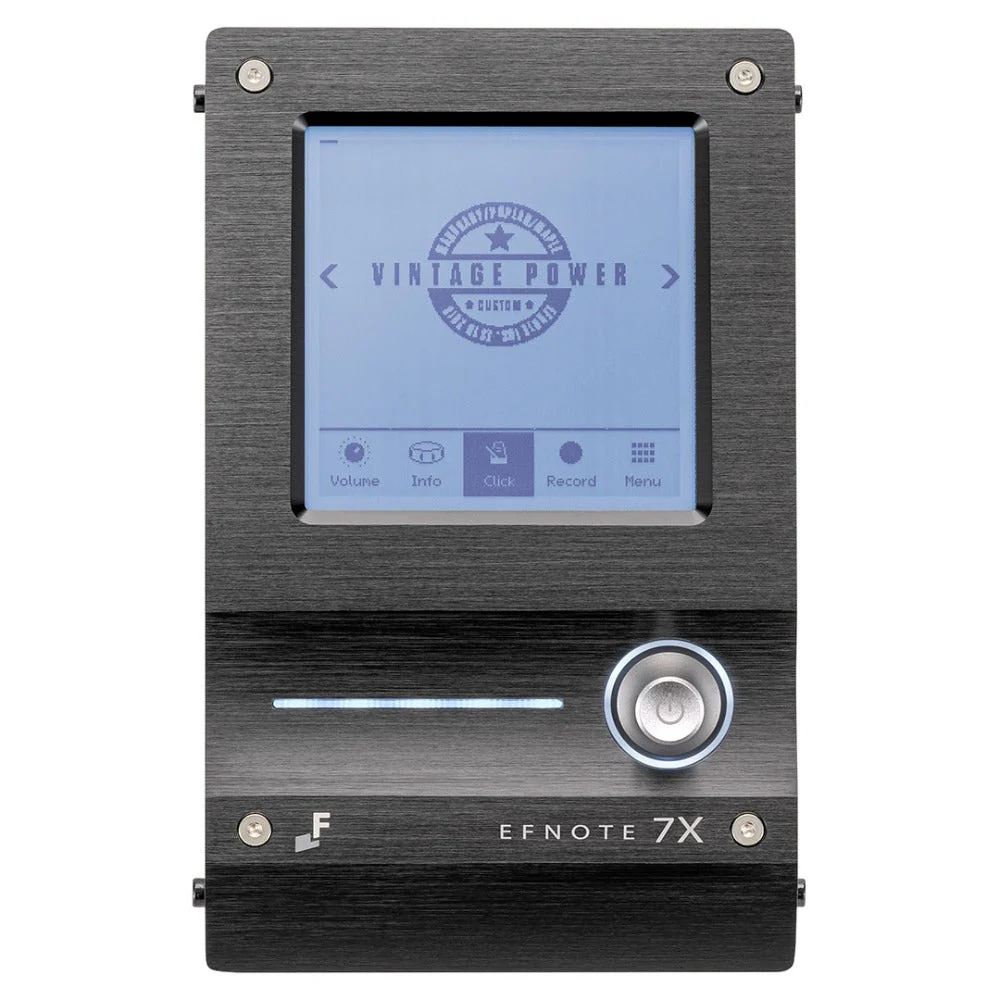

Ultra-Compact Sound Module

• Ultra-small form factor with uncompromised features

• Metal chassis and aluminum finish

• High quality DAC and audio circuit

• High power headphone amplifier

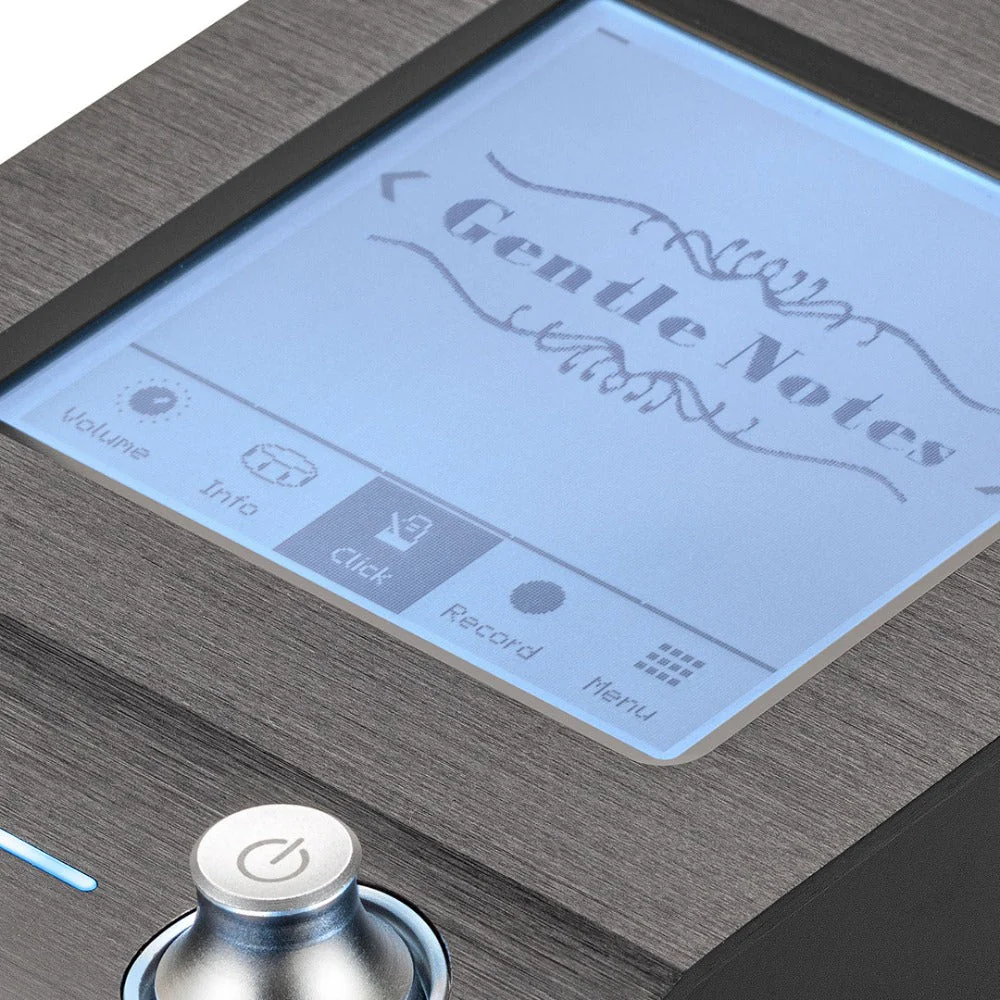

• Touch screen intuitive user interface


ELISE Sensing Processor

• Capturing drummer's intentions from each stroke

• Low latency, wide dynamic-range, consistent and stable sensing

• Optimized for EFNOTE multi-sensor drum/cymbal/hi-hat pads


Full-Scale Acoustic Sound

• Full stereo acoustic drum/cymbal samples recorded by EFNOTE

• Tru-Aco sound technology provides real drum/cymbal sound behaviors

• Raw sound without resynthesis


For Training

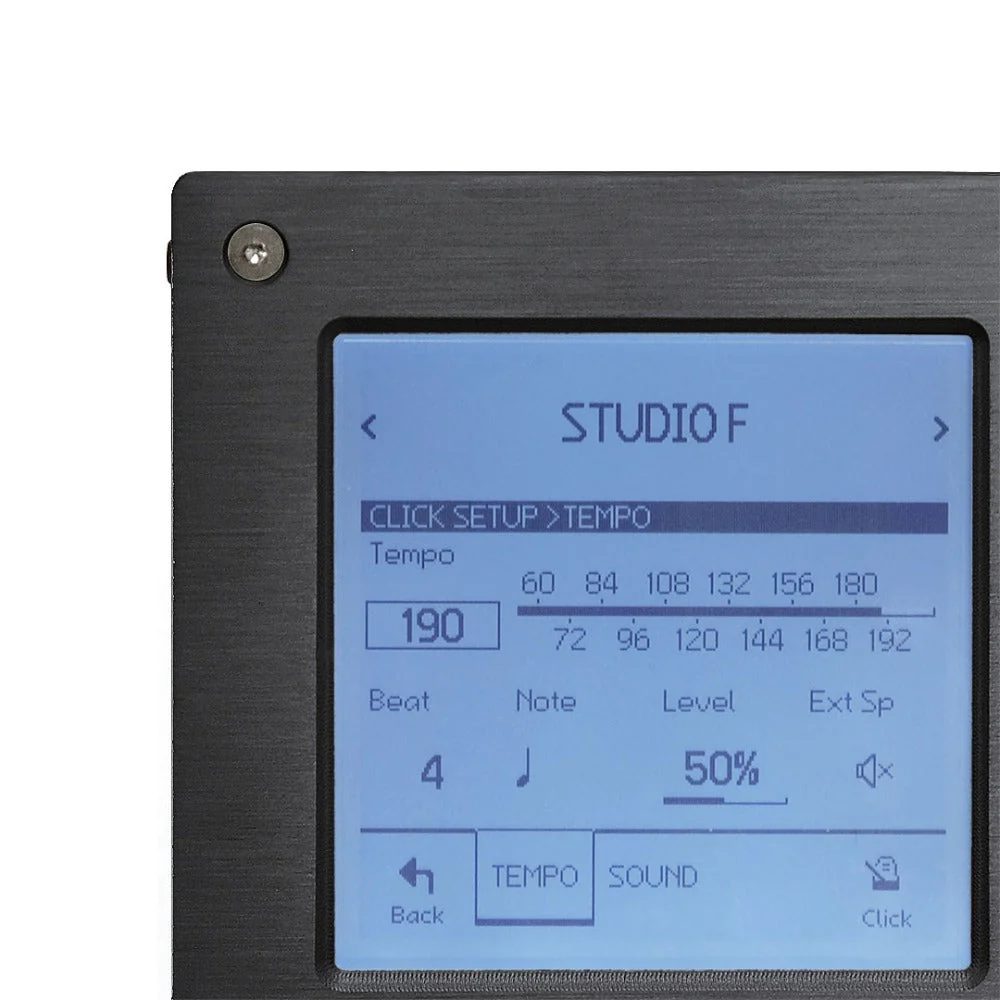

• Multi-function metronome with beat LED indicator

• Built-in metronome speaker for daily training without headphones

• On-board drum recording function (15 tracks)

• Stroke Analyzer

• Rhythm Box feature provides over 90 basic drum beats


For Recording

• USB 8-ch individual audio outputs with Mac / Windows (ASIO)

• USB 2-ch audio inputs for playback

• Analog 4-ch audio outputs

• USB MIDI in/out with individual MIDI channels

• MIDI output (5-pin DIN)


For Small Gigs

• Setlist feature enables you to configure kit order with tempo for each song

• Kick and Snare can be output individually with analog 4-ch outputs

• Click and Audio-In can be assigned only for headphones

• High-power headphones output

• MIDI output (5-pin DIN)


Stroke Analyzer

• "Stroke Scope" displays your strike points on time-line

• "Accuracy Score" estimates your strike accuracy


Sound Edit

• Tuning, Muffling, 2-band EQs for each pad

• Pad layer function can overlay two sounds

• User Inst Library enables you to store 128 customized instruments
  On-board reverb

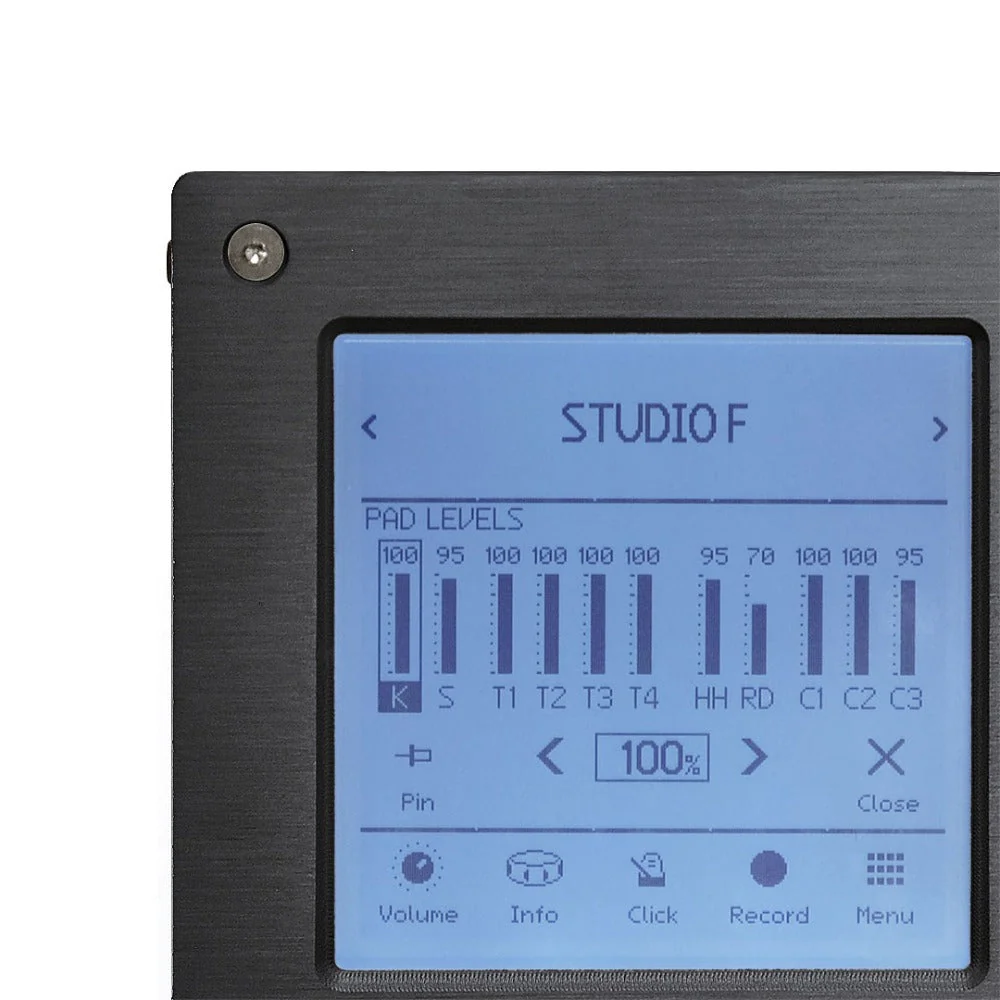

• Dedicated level control screen


Flexible Audio Routing

• 10-ch output buses

• Flexible output routing for each pad

• Output assignable click

• Output: 4-ch analog / 8-ch USB

• Input: Analog / Bluetooth / 2-ch USB


Bluetooth

• Bluetooth audio-in provides you to play along with Spotify / YouTube with your smartphone

• Bluetooth MIDI

• EFNOTE Tools App for control remotely


Various Optional Components

• Full compatible various Optional Components

• Off-the-shelf drum hardware available


EFNOTE Tools App

EFNOTE Tools
- Carry Data with You
You can backup, restore, and share drum kit data and trigger settings with your smartphone.

EFNOTE Tools
- Get New Drum Kits
Visit the official Kit Library to get the new drum kit data.

There you will surely find ideas that inspire your creativity.

EFNOTE Tools
- Adjust Remotely
For small gigs, drummers often cannot rely on FOH engineers.

Now you can remotely adjust the each pad level while playing back your beat with the built-in recorder.

EFNOTE Tools
- Swap Sounds
The Swap feature makes it easy to swap each sound of toms or cymbals.

It helps you changing the set up and editing kits.

Specifications:

Drum / Cymbal Pads
Kick
EFD-K2015

• Size: 20 x 15"

• Finish: Black Oak-ish

• Zone: Head

• Sensor: Multi

• Head: Double-layered mesh with beater patch

• Connector: Head (TRS Phones)

• Features: Wood hoop


Snare
EFD-S1455

• Size: 14 x 5.5"

• Finish: Black Oak-ish

• Zone: Head / Rim / Side-Rim

• Sensor: Multi

• Head: Double-layered mesh

• Connector: Head/Rim, Side-Rim (2x TRS Phones)

• Features: Birch shell, Colored hoop rubber, Side-Rim

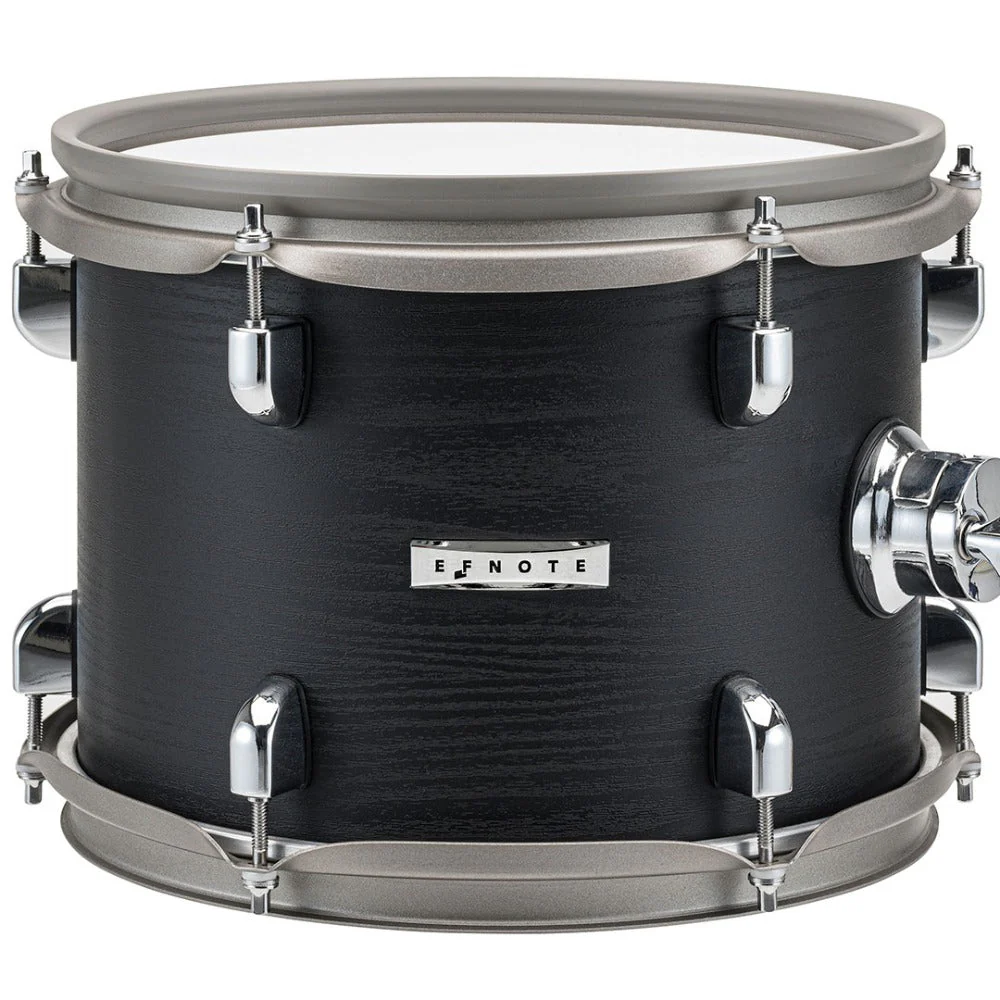

Tom
EFD-T1180

• Size: 11 x 8"

• Finish: Black Oak-ish

• Zone: Head / Rim

• Sensor: Multi

• Head: Double-layered mesh

• Connector: Head/Rim (TRS Phones)

• Features: Birch shell, Colored hoop rubber


Floor Tom 1
EFD-T1313

• Size: 13 x 13"

• Finish: Black Oak-ish

• Zone: Head / Rim

• Sensor: Multi

• Head: Double-layered mesh

• Connector: Head/Rim (TRS Phones)

• Features: Birch shell, Colored hoop rubber


Floor Tom 2
EFD-T1515

• Size: 15 x 15"

• Finish: Black Oak-ish

• Zone: Head / Rim

• Sensor: Multi

• Head: Double-layered mesh

• Connector: Head/Rim (TRS Phones)

• Features: Birch shell, Colored hoop rubber


Hi-Hat
EFD-H14

• Size: 14" (Top/Bottom)

• Color: Warm gray

• Zone: Bow / Edge / Cup

• Sensor: Multi (360° flat sensing + choke) / Optical

• Connector: 6-pin

• Features: Multi-optical sensor, Tru-motion™ hi-hat, Weight simulation, Fine engraved

surface
Crash
EFD-C16

• Size: 16"

• Color: Warm gray

• Zone: Bow / Edge / Cup

• Sensor: Multi (360° flat sensing + choke)

• Connector: Bow/Edge, Cup (2x TRS Phones)

• Features: Weight simulation, Fine engraved surface

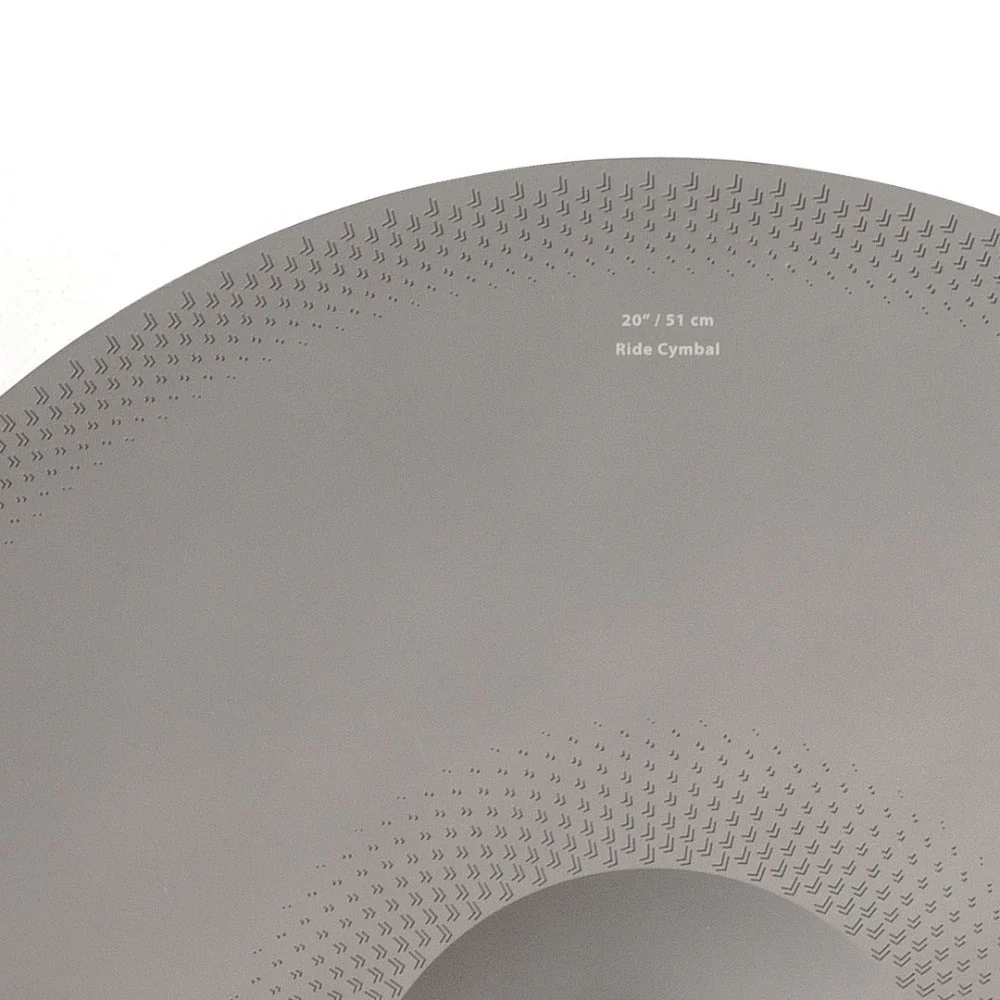

Ride
EFD-C20

• Size: 20"

• Color: Warm gray

• Zone: Bow / Edge / Cup

• Sensor: Multi (360° flat sensing + choke)

• Connector: Bow/Edge, Cup (2x TRS Phones)

• Features: Weight simulation, Hammered texture surface with fine engravings


Effect
EFD-C17FX

• Size: 17" with 8 holes

• Color: Dark gray

• Zone: Bow / Edge

• Sensor: Multi (360° flat sensing + choke)

• Connector: Bow/Edge (TRS Phones)

• Features: STAK cymbal mount, Weight simulation, Hammered texture surface with fine engravings


Splash
EFD-C08

• Size: 8"

• Color: Warm gray

• Zone: Bow / Edge

• Sensor: Multi (360° flat sensing + choke)

• Connector: Bow/Edge (TRS Phones)

• Features: Weight simulation, Fine engraved surface


Sound Module: EFD-7X
Trigger Interface

• 3-Zone: Snare, Crash 1/2*, Ride

• 2-Zone: Tom 1/2/3/4, HH, Crash 3

• 1-Zone: Kick


Audio / MIDI Interface

• Line (1/2) Output: 2x TS Phone (+4dBu, Unbalanced)

• Phones (3/4) Output: Stereo Mini-Phone (320 mW + 320 mW @32Ω)

• Audio Input: Stereo Mini-Phone (+2dBu Max)
• USB: Micro-B Type USB 2.0 Hi-Speed

• Audio: 8-ch Out (48kHz/24bit) / 2-ch In (48kHz/16bit), Mac/Windows ASIO

• MIDI: In/Out

• Bluetooth Audio Input

• Bluetooth MIDI In/Out

• MIDI Out: 5-pin DIN


Drum Kits / Instruments

• Preset Drum Kits: 20 (Editable)

• User Drum Kits: 80

• Instruments: Acoustic Drums/Cymbals (Stereo), Percussion (Stereo), Attack Elements

• User Inst Library: 128 (Can be stored customized instruments)


Edit Parameters

• Level, Pan, Tuning, Muffling (for each pad)

• 2-Band EQ (for each pad)

• Ambience Effect (8 types)

• Pad Layer


Dimensions

• 106 (W) x 172 (D) x 47 (H) mm

• 700 g


Power

• DC 12 V, 500 mA (Nominal) / 800 mA (Max)


Hardware

Sound Module Arm

• 1x Sound module arm

• 1x Smartphone tray


Notes:

• EFNOTE 7X, kick pedal, snare stand, 3 cymbal stands, HiHat stand are not included
