Darkglass Electronics M200 Microtubes 200W Bass Amplifier

Darkglass Electronics M200 Microtubes 200W Bass Amplifier Overview:

The Microtubes 200 is slimmer and lighter than ever. Packed with Aux-in and headphone output for quiet practicing and an intuitive push potentiometer for the mute and master control. Pre/bypassed DI XLR Out with switchable ground lift making these amps reliable for all sorts of musicians with an ample array of possibilities.

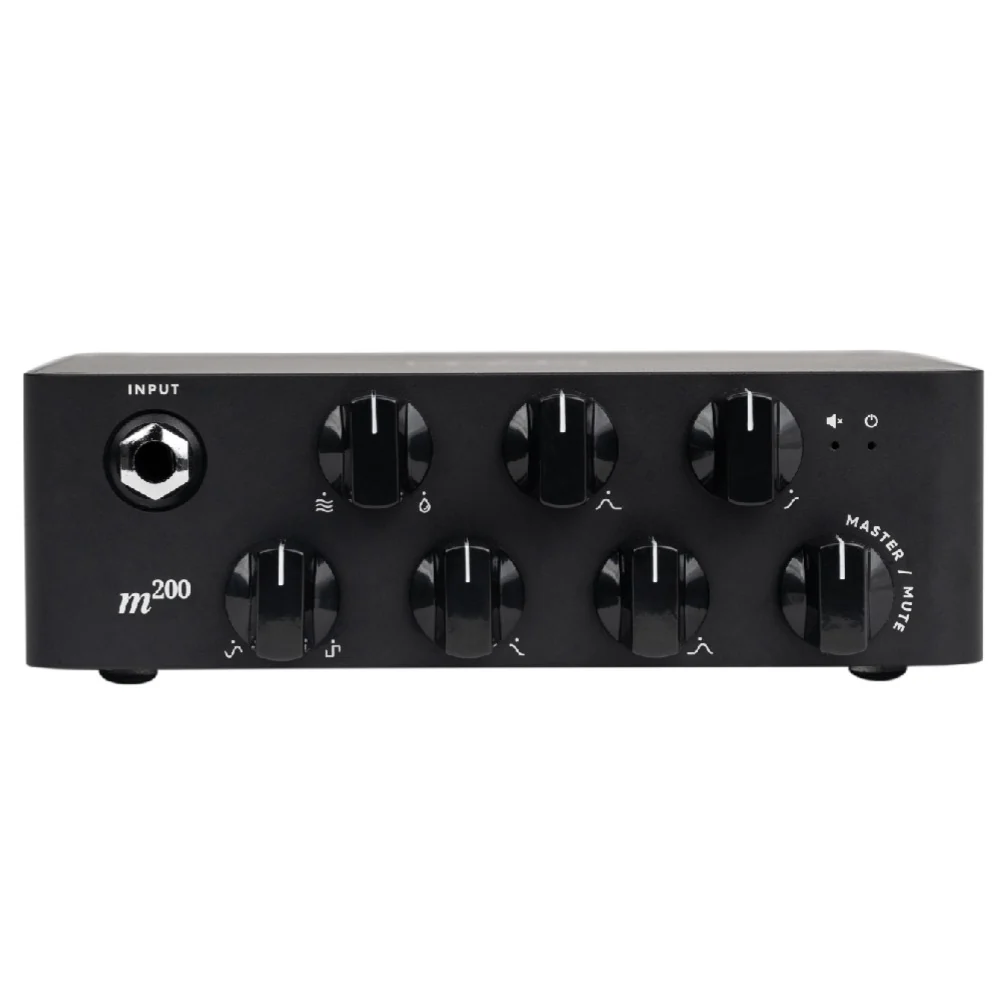

Front Panel Features:

• Input: Use this jack to connect your instrument via a standard ¼” mono cable.
• Drive: This knob controls the amount of distortion that the Microtubes B3K® Engine will deliver. It will change from a soft warm overdrive to a massive modern distortion sound.
• Blend: Use this knob to mix between the Clean signal and the Distortion signal (Microtubes B3K Engine).
• Bass: +-12dB at 80Hz. Use this knob to change the low-end content of the signal.
• Low Mids: +-12dB at 1kHz. This knob controls the low mid content of the signal.
• High Mids: +-12dB at 3kHz. This knob controls the high mid content of the signal.
• Treble: +-12dB at 5kHz. Use this knob to change the high content of the signal.
• Master/Mute: Use this knob to control the overall volume of the amplifier. Use this push knob button to mute the speaker out.
• Dimensions

  • Width: 15 cm / 6″

  • Length: 15.7 cm / 6¼”

  • Height: 5.2 cm / 2″

  • Weight: 0.965 kg / 2.12 lb

Back Panel Features:

• Speaker Output: Use this connector to connect the amplifier to your cabinet. This Speakon combo jack allows for either Speakon or ¼” speaker cable operation.
• Ground Lift: Use this control to lift the ground of the DI XLR output. If you are experiencing ground noise in your DI signal try changing the setting of this control.
• DI Output: Use this connector to send your bypass signal to the console, mic preamp, interface, etc. The DI OUTPUT delivers only the bypass DI signal.
• AC Socket: Use this connector to feed electric power to the amplifier. 100 – 230 VAC, 50-60Hz.
• AC Power Off: Use this Switch to release the audio energy from your bass.
• Headphone Output: Connect your Headphones and enjoy the analog cabinet emulation.
• Aux In: Use this connector to play music from your laptop, phone, MP3 player, etc. This input is routed only to the headphone output without cabinet emulation.
