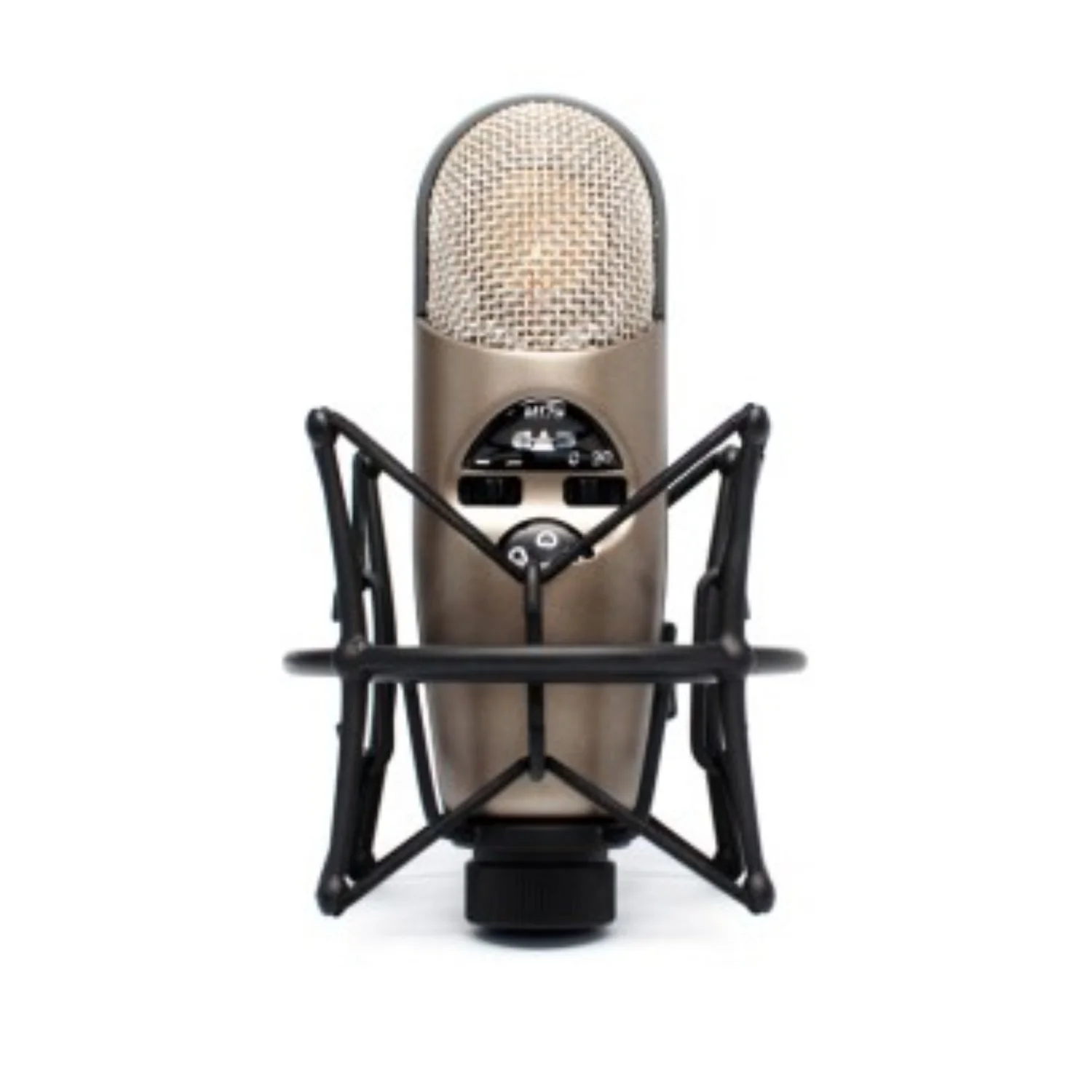

CAD Audio M179 Large Diaphragm Variable Polar Pattern Condenser Microphone

CAD Audio M179 Large Diaphragm Variable Polar Pattern Condenser Microphone

The CAD M179 combines a vintage capsule design with advanced electronics. The M179 features the dual pattern version of the original equitek e-300 capsule, an externally biased capsule with a gold sputtered 1.1" diaphragm.

Details

\n

• \n
• The CAD M179 incorporates a number of unique features including:
• \n
• Continuously variable pattern with a "hard" cardioid center detent.
• \n
• Large 1.1" dual diaphragm external bias condenser capsule.
• Gold sputtered diaphragms.
• High SPL capability (143 dB SPL with pad)
• Transformerless balanced output circuits.
• 20 dB non-capacitive pad
• 6dB/Octave @ 100Hz high-pass filter
• Stainless steel internal pop/EMI filter

Specifications

• Type: Side address, external bias condenser
• Frequency Response: 10-20 kHz
• Polar Pattern: Variable
• Impedance: 200 ohms
• Sensitivity: -36 dBV (16mV) @ 1Pa
• Equivalent Noise Level: 11 dB-A
• Maximum SPL: 143 dB SPL (with pad)
• Total Harmonic Distortion: Less than 0.15%
• Switches High-pass filter, 20dB pad
• High-Pass Filter 100Hz, 6dB/octave
• Powering: Minimum requirements are 24-52V phantom power capable of delivering at least 8 mA.
• Connector: Three pin male XLR type.
• Finish: Durable charcoal gray urethane. Satin nickle plated front & rear screen.
• Dimensions: 2.25” (57.2 mm) Dia., x 7.00” (177.8 mm) High
• Net Weight: 17.8 oz. (506 grams)
• Furnished Accessories: MZM-5 elastic suspension shockmount

Made in China
