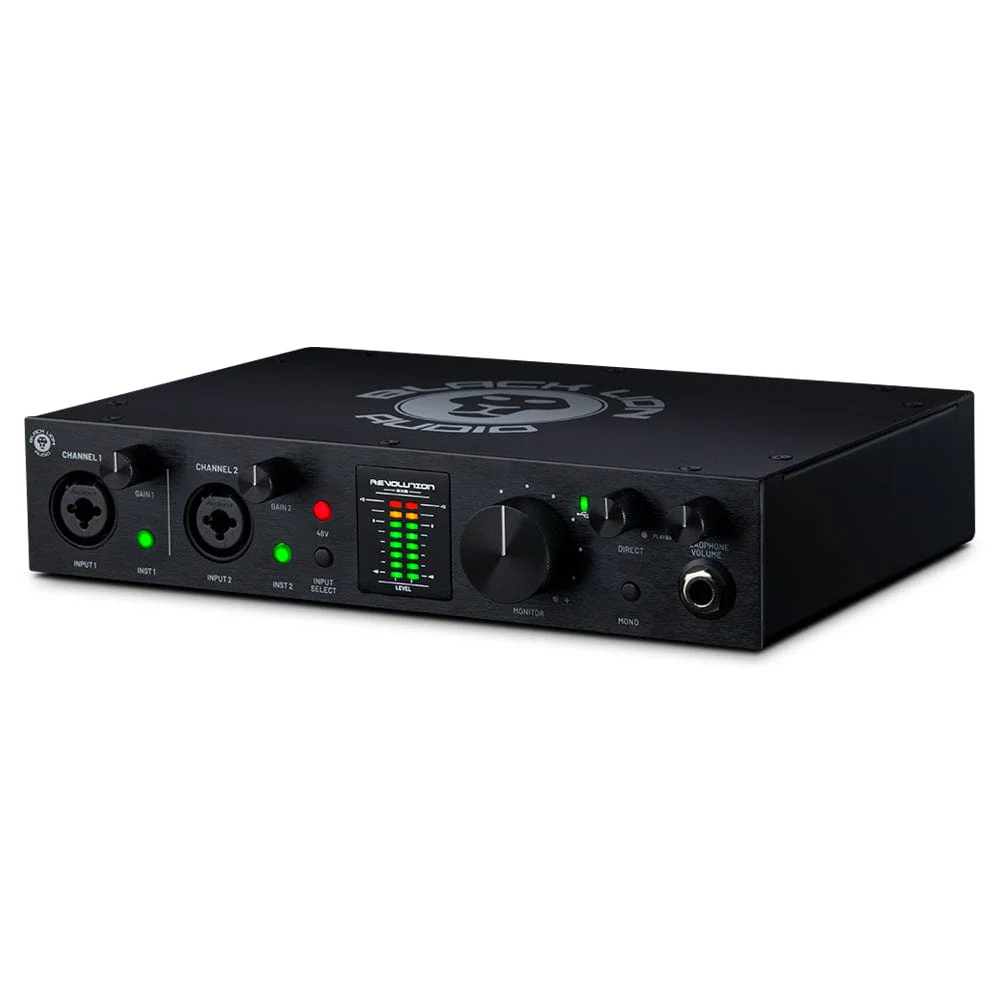

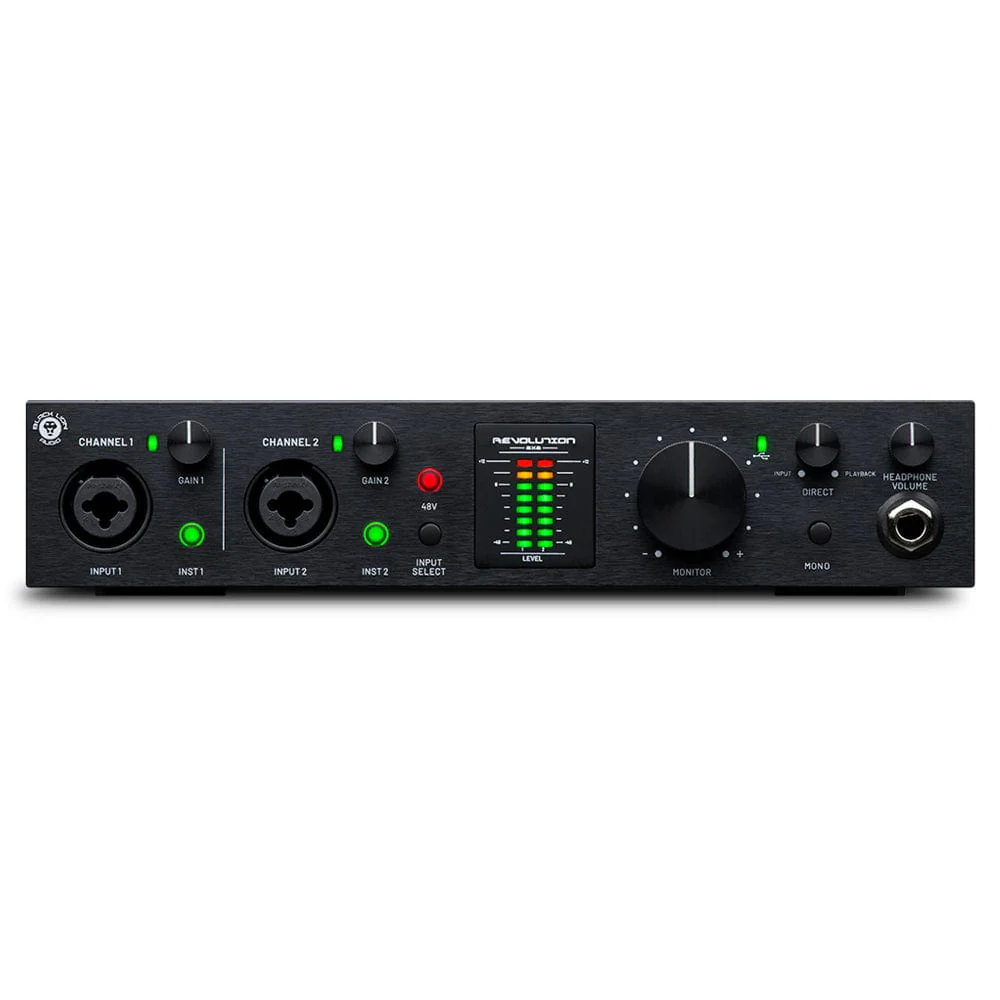

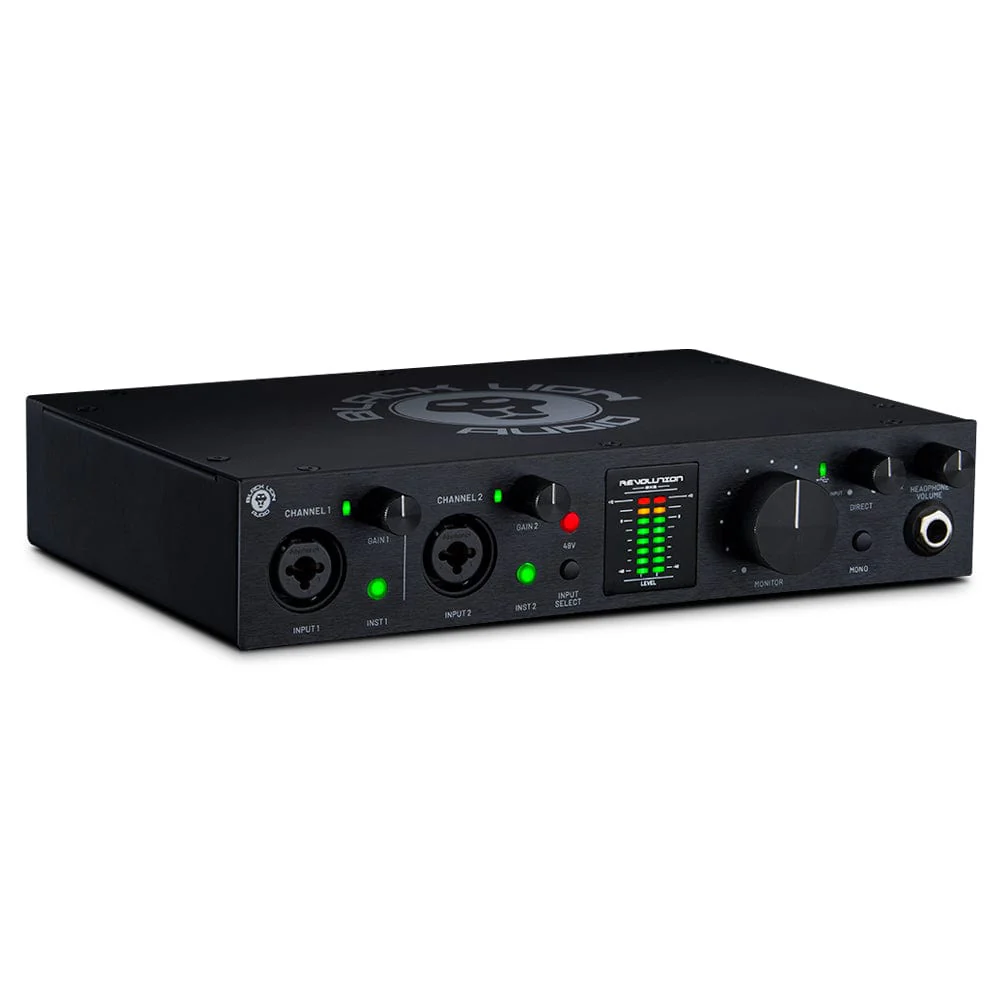

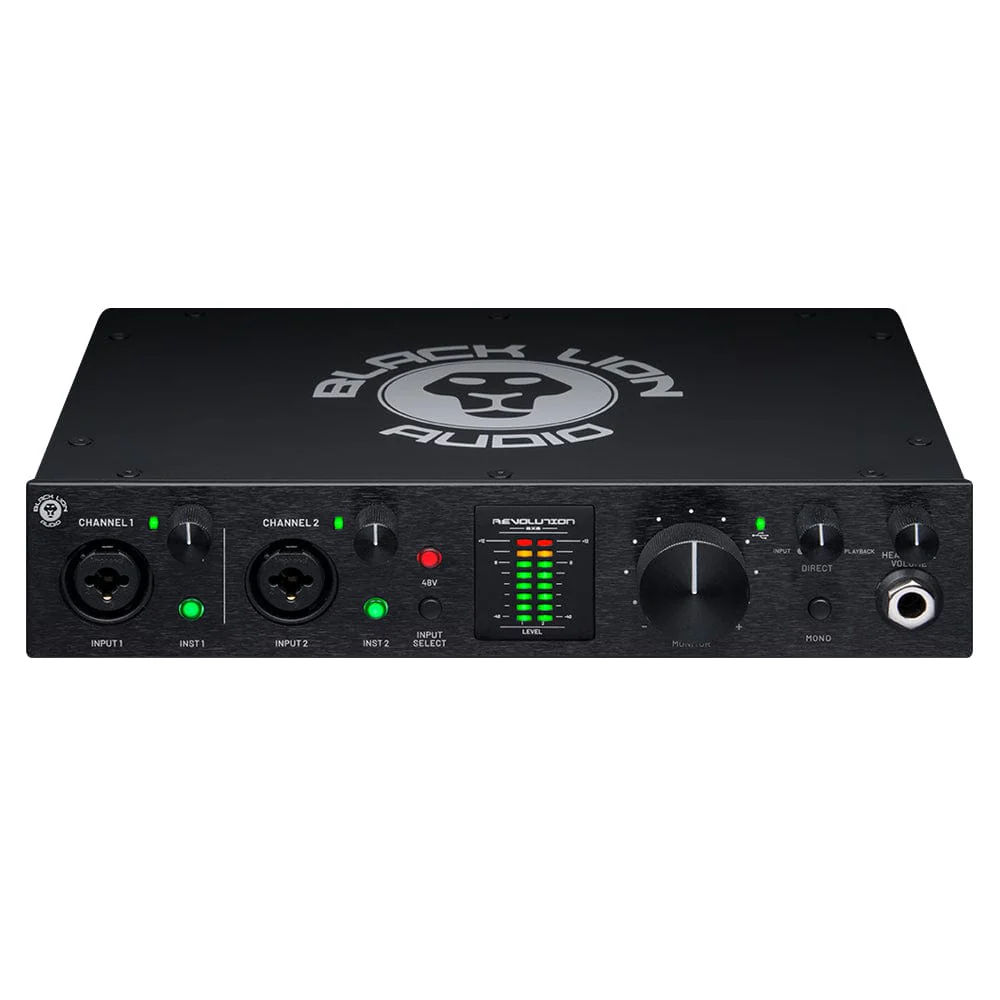

Black Lion Audio Revolution 2x2 USB C Audio Interface

Black Lion Audio Revolution 2x2 USB C Audio Interface Overview:

Black Lion Audio have been revered as the “king of audio mods” for years, and have modded countless recording interfaces over the years. But since the very beginning, we’ve been asked when we would create our own interface. So, we planned, engineered, and worked — all in secret, for years. It took an impressive amount of design to revolutionize bus-powered, studio-grade interfaces. Now we are responding with Revolution 2×2: the ultimate in portable recording interfaces. Revolution isn’t another run-of-the-mill interface from big brother — it’s the interface the world has always asked for. Don’t just settle for “the cheap and portable” – get an interface that can do more than just start a demo, but actually finish a top-level record from start to finish.

Features

• 24bit, 192KHz USB C interface
• Bus Powered
• Macro MMC clocking
• Analog circuit design utilizing Nichicon, Vishay and Wima capacitors
• PG-i power filtering technology
• USB Class Compliant
• Revolution Software Suite

Technical Specifications

• Mic Input
• Input Impedance = 3KΩ (balanced)
• Gain Range = 55dB
• Frequency Response = 20Hz – 20KHz +/- 0.25dB
• THD + N = .00098% (@12dB Gain)
• Dynamic Range = 116dB (A-Weighted)
• Crosstalk = < 100dB
• Line Input
• Input Impedance = 14KΩ (balanced)
• Maximum Input = 20dBu
• Gain Range = 55dB
• Frequency Response = 20Hz – 20KHz +/- 0.25dB
• THD + N = .0022% (Min Gain)
• Dynamic Range = 126dB (A-Weighted)
• Crosstalk = < 100dB
• Line Outputs
• Output Impedance = 95Ω (balanced)
• Max Output Level = 12dBu
• Frequency Response = 20Hz – 20KHz +/- 0.25dB
• THD+N = .002% (@ +10dBu)
• Dynamic Range = 106dB**
• Instrument Input
• Input Impedance = 1MΩ (unbalanced)
• Gain Range = 55dB
• Frequency Response = 20Hz – 20KHz +/- 0.25dB
• THD + N = .00114% (@ 0dBu)
• Dynamic Range = 103dB (A-Weighted)
• Crosstalk = < 100dB
• Headphone Outputs
• Output Impedance = 2.5Ω
• Maximum Signal Output = 9.3dBu
• Frequency Response = 20Hz – 20KHz +/- 0.5dB

Made in China
